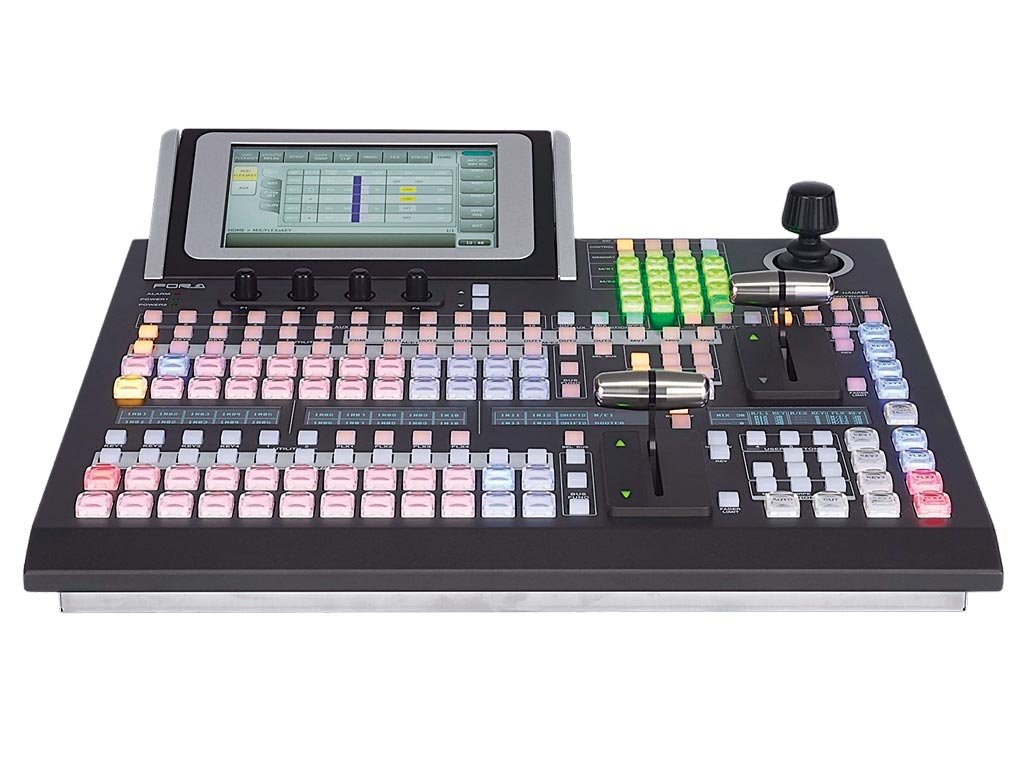

Control panels

HVS-491OU:   1 M/E 12 buttons HVS-492ROU: 2 M/E 12 buttons

HVS-492OU:   2 M/E 18 buttons HVS-492WOU: 2 M/E 22 buttons

Video formats

HD-SDI:   1080/59.94i, 1080/50i, 1080/29.97PsF, 1080/29.97p, 1080/25PsF, 1080/25p,   1080/24PsF, 1080/24p, 1080/23.98PsF, 1080/23.98p, 720/59.94p, 720/50p

3G-SDI:   1080/59.94p, 1080/50p (Level-A)

Video formats (optional)

HVS-49EXP4K

2160/59.94p, 2160/50p   (Level-A, 2SI, SQD)

2160/29.97p, 2160/25p,   2160/24p, 2160/23.98p (Level-B-DS, 2SI, SQD)

2160/59.94i, 2160/50i,   2160/29.97PsF, 2160/25PsF, 2160/24PsF, 2160/23.98PsF (SQD)

HVS-49SD

SD-SDI:   525/60 (NTSC), 625/50 (PAL)

Video inputs

HD-SDI:   1.5 Gbps, BNC x 16, 75Ω (frame synchronizer x 16, re-sizing engine x 4)

3G-SDI:   3 Gbps

Video inputs (optional)

HVS-49IO

HD-SDI:   1.5 Gbps, BNC x 16, 75Ω (frame synchronizer x 16, re-sizing engine x 4)

3G-SDI:   3 Gbps (Level-A/Level-B)

HVS-100DI-A

HD-SDI:   1.5 Gbps, BNC x 4, 75Ω

3G-SDI:   3 Gbps (Level-A/Level-B), BNC x 4, 75Ω

HVS-100AI

HD analog component, Analog   composite

HVS-100PCI

HDMI:   SXGA to WUXGA/HDTV (1080i, 1080/59.94p, 50p, 29.97p, 25p, 24p, 23.98p), SXGA   to WXGA/HDTV (720p)

RGB:   SXGA to WUXGA/HDTV (1080i, 1080/59.94p, 50p), SXGA to WXGA/HDTV (720p)

Number of video input

Standard: 16 (SDI only),   Max.: 40 (varies depending on optional configuration)

Video outputs

HD-SDI:   1.5 Gbps, BNC x 8, 75Ω (PGM x 2, AUX x 6)

3G-SDI:   3 Gbps,

HDMI   (AUX) x 1 (HDCP-incompatible. AUDIO support)

Video outputs (optional)

HVS-49IO

HD-SDI:   1.5 Gbps, BNC x 8, 75Ω (PGM x 2, AUX x 6)

3G-SDI:   3 Gbps (Level-A)

HDMI   (AUX) x 1 (HDCP-incompatible. AUDIO support)

HVS-100DO

HD-SDI:   1.5 Gbps, BNC x 2, 75Ω

3G-SDI:   3 Gbps (Level-A), BNC x 2, 75Ω

HVS-100AO

HD analog component, Analog   composite

HVS-100PCO

HDMI:   SXGA to WUXGA/HDTV (1080i, 1080/59.94p, 50p, 29.97p, 25p, 24p, 23.98p), SXGA   to WXGA/HDTV (720p)

RGB:   SXGA to WUXGA/HDTV (1080i, 1080/59.94p, 50p), SXGA to WXGA/HDTV (720p)

Number of video outputs

Standard: 9 (SDI x 8 + HDMI x   1) / Max.: 22 (varies depending on optional configuration)

AUX

Standard: 6, Max.: 12 *   Effect transitions available for all AUX signal changes

Processing

4:2:2, digital component

Quantization

3G/HD/SD-SDI: 10-bit

Multi viewer

Output channels: 3, Split   display: 2/4/5/7/9/10/11/14/15/16 (Max. 49 via HDMI 2.0 Level B), Display:   Title, tally, audio level meter

Process amplifier

Equipped with all inputs

Still/clip store

4 channels (stores up to 1796   frames (60 seconds) at 1080i)

2.5D DVE

Standard: 16 (1080/59.94p,   50p: Standard: 8, Max.: 16)

2.5D DVE (optional)

HVS-49DVE

1080/59.94p, 50p: 8

Transitions

Available controller: Fader   controller, AUTO button, CUT button, Type: MIX or WIPE (DVE included)

Audio inputs/outputs   (optional)

HVS-49AES

Embedded:   BNC x 8 (16 channels), synchronous/asynchronous, 48 kHz, 16 to 24 bit (3G   Level B: Link A embedded only)

Input:   BNC x 4 (stereo x 4, 8 channels), unbalanced, 75Ω, 32/44.1/48 kHz, 24-bit

Output:   BNC x 4 (stereo x 4, 8 channels), unbalanced, 75Ω, 48 kHz, 24-bit

I/O:   D-sub 25-pin x 1 (stereo x 4, 8 channels), 110Ω, balanced, input: 32/44.1/48 kHz, output: 48 kHz, 24-bit

Genlock input

BB: 0.429 Vp-p (NTSC)/0.45   Vp-p (PAL) or Tri-level sync: 0.6 Vp-p, 75Ω, BNC x 1, loop-through (to be terminated with 75Ω terminator, if unused)

Genlock output

BB: 0.429 Vp-p (NTSC)/0.45   Vp-p (PAL) or Tri-sync: 0.6 Vp-p, 75Ω, BNC x 1

System phase adjustment

Horizontal: -1/2H to +1/2H

Video I/O delay

Minimum delay: approx. 1.4 H,   approx. 1.7 H at 720/59.94p, approx. 1.8 H at 720/50p

0 to 1 frames + Minimum delay   (when FS or input re-sizing engine used)

1 to 2 frames + Minimum delay   (when FS or input re-sizing engine plus DVE used)

2 to 3 frames + Minimum delay   (when FS or input re-sizing engine plus output re-sizing engine plus DVE   used)

External memory

SD-CARD slot

Inernal memory (optional)

HVS-49SSD240G

240 GB

Interface

RS-422:   9-pin D-sub (female) x 2

GPI   IN: 25-pin D-sub (female) for 19 inputs

GPI/TALLY   OUT: 25-pin D-sub (female) for 22 outputs

Ethernet:   RJ-45 x 2, HVS-LAN (for OU connection), PC-LAN (for computer and peripheral   device connection)

Temperature/humidity

0°C to 40°C/10% to 90% (no condensation)

Power

AC 100 V to 240 V ±10%, 50/60 Hz

Consumption

HVS-490:   508 W (100-120 V), 452 W (220-240 V), full option: 780 W (100-120 V), 723 W   (220-240 V)

HVS-491OU:   16 W (100-120 V), 16 W (220-240 V) HVS-492ROU: 20 W (100-120 V), 18 W   (220-240 V)

HVS-492OU:   27 W (100-120 V), 28 W (220-240 V) HVS-492WOU: 30 W (100-120V), 28 W (220-240   V)

Size/weight

HVS-490:   429 (W) mm x 132 (H) mm x 490 (D) mm/approx. 17 kg (full option: approx. 23   kg)

HVS-491OU:   430 (W) mm x 132 (H) mm x 376.4 (D) mm/approx. 6 kg (incl. redundant power   supply: approx. 7 kg)

HVS-492ROU:   430 (W) mm x 132 (H) mm x 474 (D) mm/approx. 7 kg (incl. redundant power   supply: approx. 8 kg)

HVS-492OU:   646 (W) mm x 132 (H) mm x 510 (D) mm/approx. 11 kg (incl. redundant power   supply: approx. 11 kg)

HVS-492WOU:   844 (W) mm x 132 (H) mm x 484 (D) mm/approx. 12 kg (incl. redundant power   supply: approx. 13 kg)

Accessories

Included   with HVS-490: CD-ROM (Operation manual), Quick Setup Guide, AC cord, rack   mount bracket

HVS-491OU/492ROU/492OU/492WOU:   MU/OU connecting cable (10 m), AC cord

Consumables/replacement   timing

(constant use at room   temperature)

HVS-490:   Power unit/approx. 5 years, Redundant power supply unit/approx. 5 years,   Cooling fan/approx. 4 years

HVS-491OU/492ROU/492OU/492WOU:   Power unit/approx. 5 years, Redundant power supply unit/approx. 5 years

Options

See “Options” for details.
